DEK Galaxy

SALES STATUS: Sold

DEK Galaxy

IBE SMT Inventory ID : 121126-002
DEK Serial Number : 286393
Vintage : 2005

Details

Blue 300mm USC with Vacuum
Advanced Board & Stencil Inspection
Gold Camera
Includes Grid-Lock with 5 HD Support Bars
Large Board Option; QC Calc Enabled; ASM

Specifications ( See Details above for installed options )

Machine Alignment Capability: >2 Cpk @ +/- 12.5µm, 6 Sigma #
Process Alignment Capability: >2 Cpk @ +/- 12.5µm, 6 Sigma #
Core Cycle Time: 7 secs (4 secs with RTC option)
Maximum Print Area: 510mm * (X) x 508.5mm (Y)
Printer Construction: One piece optimized welded frame
Operating System: Windows XP
Operator Interface: Colour TFT touch screen display, keyboard and trackball
Camera: Gold digital camera, using IEEE 1394 interface. Multi channel
Camera Positioning: High Accuracy linear motors and encoders
Squeegee Pressure Mechanism: Software controlled with closed loop feedback
Image position: centre, front, custom
Stencil Positioning: Automatic loading incorporating squeegee drip tray
Stencil Alignment: Motorized via actuators X, Y and Theta
Under Stencil Cleaning: Cyclone high speed cleaner, fully programmable
Vacuum Assist for USC On board vacuum unit 35 litres/sec airflow
Squeegee: Clamped double trailing edge squeegee (1 set included)
Substrate Handling Size: 50mm (X) x 40.5mm (Y) Min
Substrate Handling Size: 620mm (X) * x 508.5mm (Y) Max
Substrate Thickness: 0.2mm to 6mm

Approximate Weight: 840kg boxed or 680kg unboxed
Approximate Dims: 2060mm x 1500mm x 1570mm

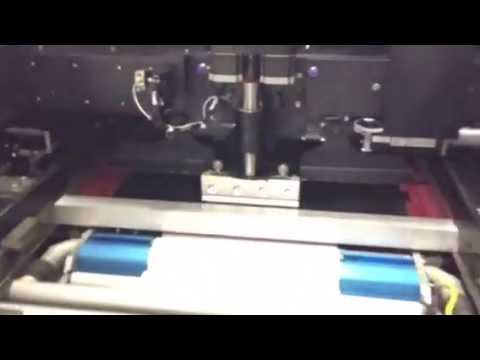

Video
